H2STORE

01.08.2012 – 31.07.2015

Prof. Dr. Leonhard Ganzer
Dr. Viktor Reitenbach

The H2STORE project was tasked with investigating long-term storage of electrical energy in the form of hydrogen in porous underground gas storages. In doing so possible interactions between the geology, reservoir fluid, microorganisms and hydrogen were observed and subsequently numerically modelled. To this end, sample material were exposed to hydrogen-bearing fluids whereby their individual chemical, mineralogical, petrophysical and microbial compositions of the reservoir samples and their associated pore fluid were examined prior to and after experimentation. H2STORE therefore provides the basis information on the behavior of hydrogen in porous media in conditions ranging from 40 to 120°C and pressures ranging from 4 to 20 MPa. The conditions implemented originate from genuine natural gas storages.
Subproject TP1 aimed to investigate the petrophysical and geochemical changes in the reservoir and surrounding overburden rocks by investigating the effects of hydrogen on the flow characteristics of the reservoir and the sealing efficiency of the overbearing cap rock. For this purpose batch experiments, representing the hydrogen-reservoir-cap rock-porefluid systems, in High Pressure and High Temperature Autoclaves were employed. The samples underwent a series of investigations including SCAL analyses to investigate possible changes in fluid transport and barrier properties.

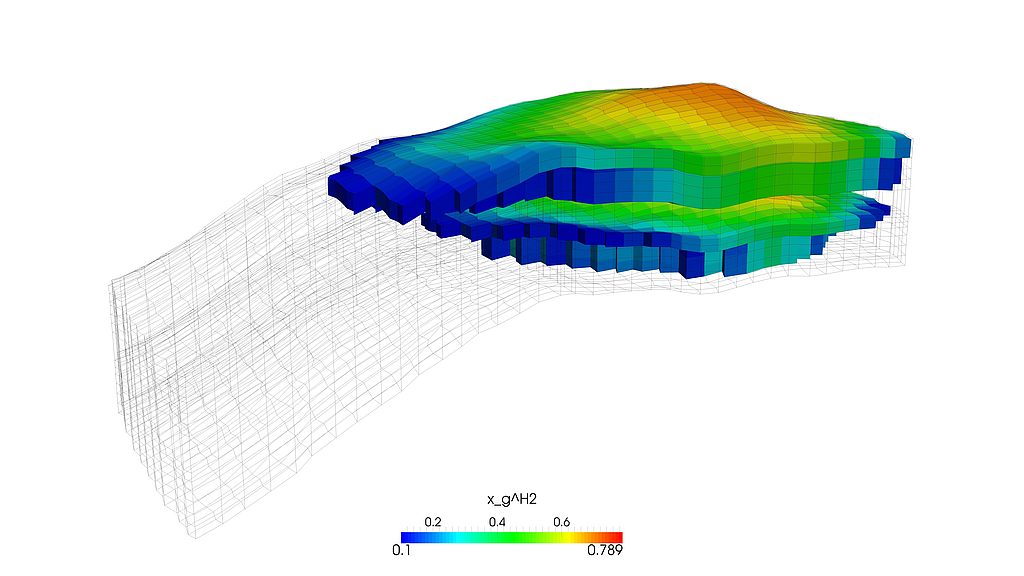

In Subproject TP2, the TU Clausthal in cooperation with the Energieforschungszentrum Niedersachsen and University of Lorraine were tasked with carrying out the modeling and numerical simulations depicting the propagation and dynamic changes in composition of injected hydrogen gas and their corresponding reactive transport processes. Population dynamics of the microbial components and hydraulic instabilities were adressed. Possible geochemical reactions between the rock and organic matter with reservoir fluids and hydrogen as well as biogenic regeneration were to be clarified.

• Feldmann, F.; Hagemann, B.; Ganzer, L.; Panfilov, M. (2016): Numerical simulation of hydrodynamic and gas mixing processes in underground hydrogen storages. In Environmental Earth Sciences 75 (16), p. 1165. DOI: 10.1007/s12665-016-5948-z.
• Ganzer, L.; Reitenbach, V.; Pudlo, D.; Albrecht, D. (2014): H2STORE: Investigation of geohydraulic, mineralogic, geochemical and biogene interactions in underground-storage of H2 in converted gas reservoirs. In : DBI-Fachforum GEO-Energie. Leipzig.
• Ganzer, L.; Reitenbach, V.; Pudlo, D.; Panfilov, M.; Albrecht, D.; Gaupp, R. (2013): The H2STORE Project - Experimental and Numerical Simulation Approach to Investigate Processes in Underground Hydrogen Reservoir Storage. In : EAGE Annual Conference & Exhibition incorporating SPE Europec: Society of Petroleum Engineers.
• Hagemann, B.; Feldmann, F.; Panfilov, M.; Ganzer, L. (2015a): Hydrodynamic and Bio-chemical Effects during Underground Hydrogen Storage. In : 1st DuMuX User Meeting. Stuttgart (Germany).
• Hagemann, B.; Feldmann, F.; Panfilov, M.; Ganzer, L. (2015b): Numerical modeling of gas mixing and bio-chemical transformations during underground hydrogen storage within the project H2STORE. In : AGU Fall Meeting. San Francisco (USA).
• Hagemann, B.; Panfilov, M. (2014): Modeling Coupled Hydrodynamic and Bioreactive Processes in UHS. In : 2nd Stakeholder Workshop - UNDERGROUND SUN.STORAGE.
• Hagemann, B.; Panfilov, M.; Ganzer, L. (2016a): Modelling bio-reactive transport in underground hydrogen storages - Spatial separation of gaseous components. In : 15th European Conference on the Mathematics of Oil Recovery, ECMOR 2016. Amsterdam (Netherlands).
• Hagemann, B.; Panfilov, M.; Ganzer, L. (2016b): Multicomponent gas rising through water with dissolution in stratified porous reservoirs ‐ Application to underground storage of H2 and CO2. In Journal of Natural Gas Science and Engineering 31, pp. 198–213. DOI: 10.1016/j.jngse.2016.03.019.
• Hagemann, B.; Panfilov, M.; Ganzer, L.; Reitenbach, V. (2015c): Numerical modeling of coupled hydrodynmaic and bio-chemical processes in underground hydrogen storage. In : 6th International Conference of "Fundamentals & Development of Fuel Cells". Toulouse (France).
• Hagemann, B.; Rasoulzadeh, M.; Panfilov, M.; Ganzer, L.; Reitenbach, V. (2014a): Hydrogenization of Underground Storage of Natural Gas - Impact of Hydrogen on Bio-chemical Transformations of Stored Gas. In : ECMOR XIV - 14th European Conference on the Mathematics of Oil Recovery: EAGE Publications BVNetherlands (Proceedings).
• Hagemann, B.; Rasoulzadeh, M.; Panfilov, M.; Ganzer, L.; Reitenbach, V. (2014b): Kinetic model with memory for biochemical reactions in underground hydrogen storage. In : 24e Reunion des Sciences de la Terre. Pau, France.
• Hagemann, B.; Rasoulzadeh, M.; Panfilov, M.; Ganzer, L.; Reitenbach, V. (2015d): Mathematical modeling of unstable transport in underground hydrogen storage. In Environmental Earth Sciences 73 (11), pp. 6891–6898. DOI: 10.1007/s12665-015-4414-7.
